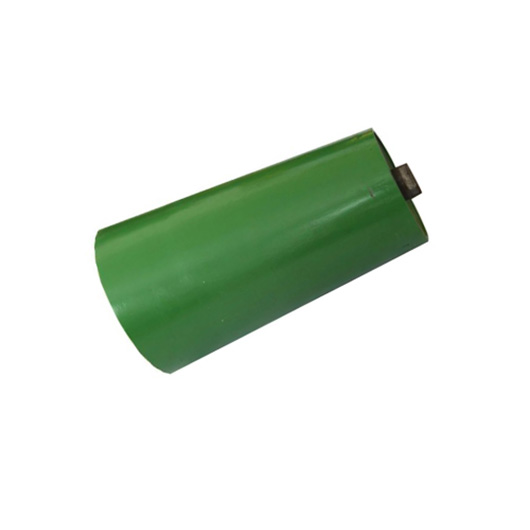

The conical self-aligning roller is mainly for supporting the conveyor belt, to ensure the smooth operation the belt. It has the characteristics of wear resistance, light weight, small rotational inertia and reliable sealing.
Protect belt from damage
Prevent belt deviation, make sure the belt running smoothly
Low rotational resistance, low radial run-out
Water and dust proof
Excellent mechanical properties, light weight
|
Belt width |
800 - 2400 mm |
|
O.D |
108 - 219 mm |
|
Length |
374 - 1028 mm |
|
Bearing |
6305, 6306, 6307, 6308 |
|
Bearing diameter |
25 - 40 mm |
