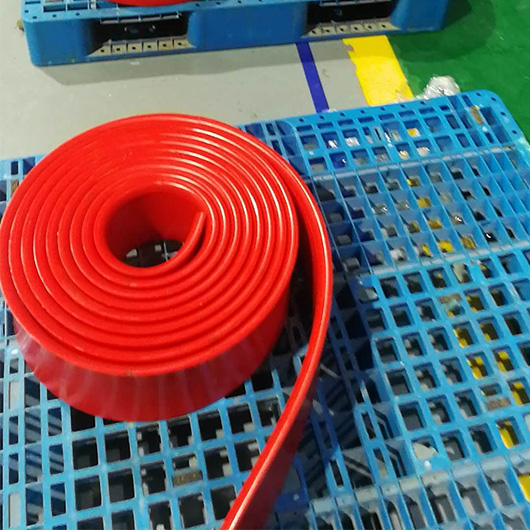

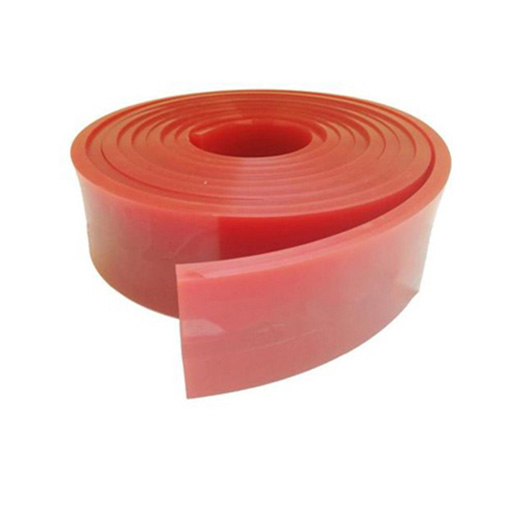

The PU skirt suitable for heavy duty and high wear of conveyor system, processed with top quality material, which decreases wear on your belt and protecting the conveyor line.
These skirts can be produced up to 50’ long continuously. The edges from 45° down to 10° allows you to choose the skirt that lays flatter and provides the best seal, which keeps the product contained along the belt.
Soft material, belt friendly
High wear and tear resistance, longer life

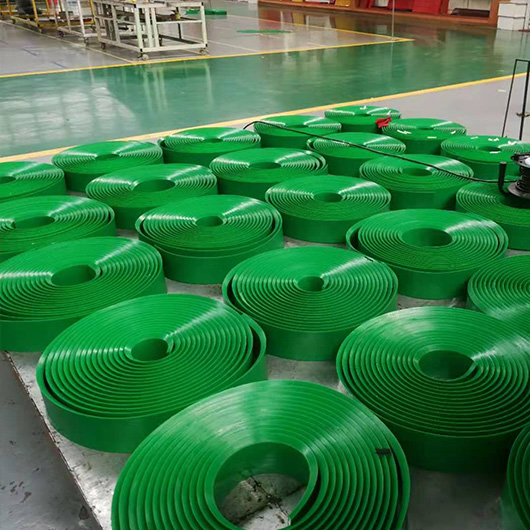

Various sizes and colors are available
Good sealing performance, multiple bevel edge are available
Standard length 15m/30m per roll, less wastage

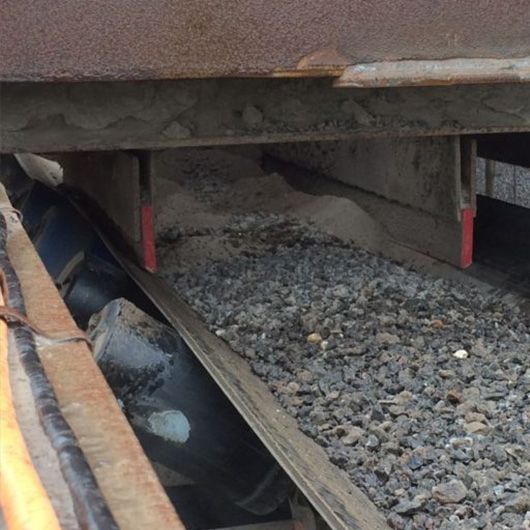

Recommend used for hard rock mining, such as trap rock, gold & copper ore, oil sands conveying applications.
|
Order No. |
Thickness. mm |
Width. mm |
Length. mm |
|
410010 |
10 |
100 - 450 |
Customized |
|
410012 |
12 |
100 - 450 |
Customized |
|
410015 |
15 |
100 - 450 |
Customized |
|
410016 |
16 |
100 - 450 |
Customized |
|
410020 |
20 |
100 - 450 |
Customized |
