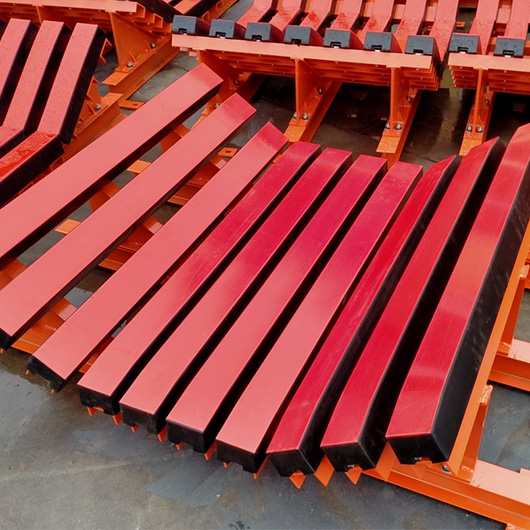

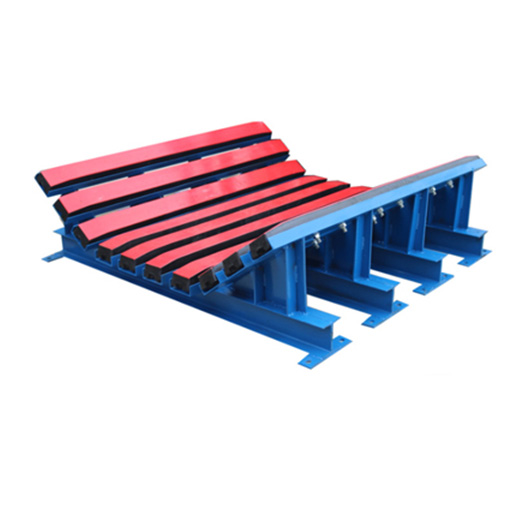

Impact bar is an important part of belt conveyor impact bed, which is composed of wear resistant UHMWPE plate, high elastic rubber and aluminum part. Elastic rubber can effectively absorb the impact force when the material falls, improve the loading condition of the blanking point and reduce the loss to the conveyor belt. Smooth ultra-high molecular polyethylene surface (UHMWPE), makes the friction between the conveyor belt and the impact bar to the minimum, good wear resistance and impact resistance. Meanwhile, the application of impact bar effectively prevents the longitudinal tearing of conveyor belt caused by the rupture and falling off of idlers, greatly reducing the probability of longitudinal tearing of conveyor belt after being penetrated by sharp instruments or sharp materials.
The contact between the impact bar and conveyor belt can reduce the damage to the belt.
The conveyor belt is stressed evenly at the loading zone, which greatly reduces the daily maintenance cost.
Effectively reduce the material spatter and leakage caused by the uneven stress of the belt
Smooth surface of UHMWPE can reduce the friction of conveyor belt during operation.
The slope design at both ends of the impact bar can ensure the smooth passing of the belt.
The parts of impact bar are connected by vulcanization process, compact and firm.
|
Order No. |
Length.mm |
Width. mm |
Height. mm |
UHMWPE. mm |
|
501200 |
1200 |
100 |
55 / 75 / 100 |
12.5 or Custom |
|
501220 |
1220 |
100 |
55 / 75 / 100 |
12.5 or Custom |
|
501300 |
1300 |
100 |
55 / 75 / 100 |
12.5 or Custom |
|
501500 |
1500 |
100 |
55 / 75 / 100 |
12.5 or Custom |
|
501520 |
1520 |
100 |
55 / 75 / 100 |
12.5 or Custom |
* Color of UHMWPE: Red, Blue, white, black
