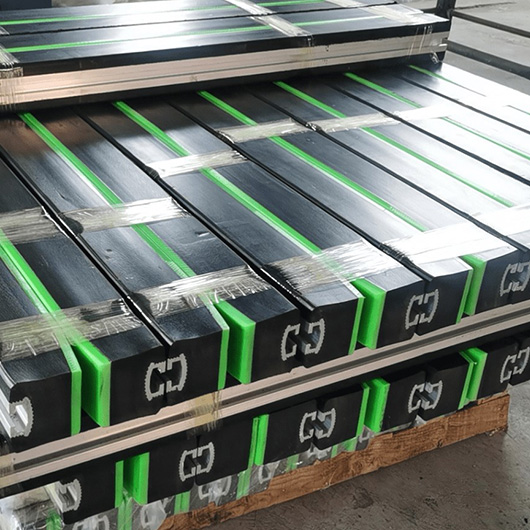

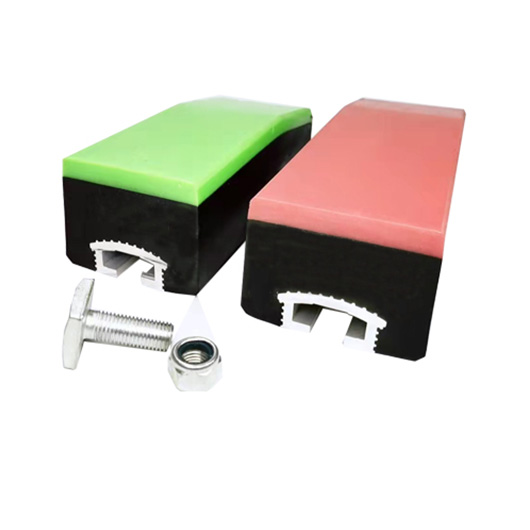

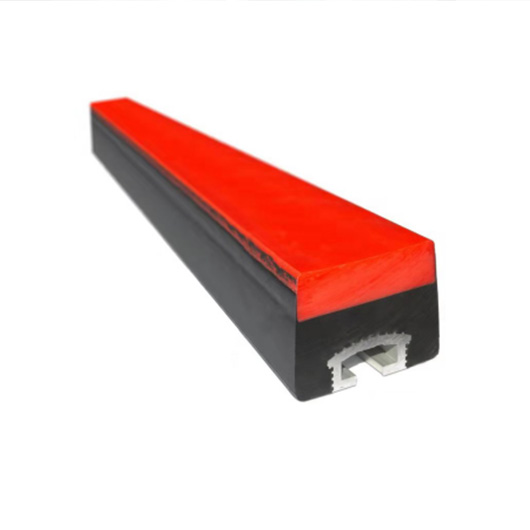

Conveyor impact bed is designed to protect the conveyor belt at key transfer loading point areas. They help to keep bulk materials on the belt where it belongs. The impact beds help to absorb shock loads and support the full width of the conveyor belt. They help to eliminated the cost of idler maintenance and failure.
High absorb shocking
Superior wear resistant, prolong service life
Easy install and maintenance
UHMWPE layer protects belt from damaging
Anodized aluminum insert helps to prevent corrosion
Reduce material spillage and spillover
|
Order No.
|
Belt width.mm
|
No. Of Impact bar |
||
|
Left |
Center |
Right |
||
|
510500 |
500 |
1 |
2 |
1 |
|
510650 |
650 |
2 |
2 |
2 |
|
510800 |
800 |
2 |
3 |
2 |
|
511000 |
1000 |
3 |
3 |
3 |
|
511200 |
1200 |
3 |
4 |
3 |
|
511400 |
1400 |
4 |
5 |
4 |
|
511600 |
1600 |
5 |
5 |
5 |
|
511800 |
1800 |
5 |
6 |
5 |
|
512000 |
2000 |
6 |
6 |
6 |
