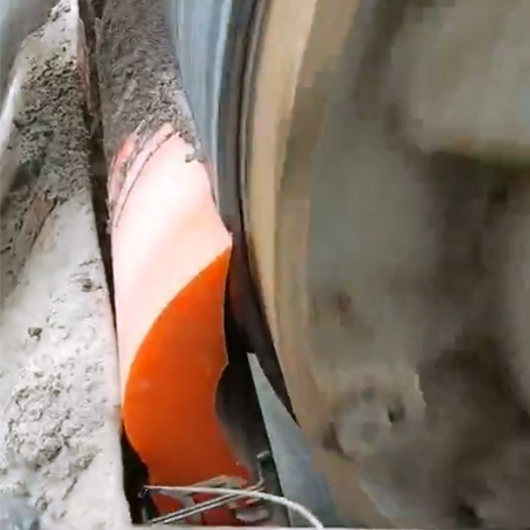

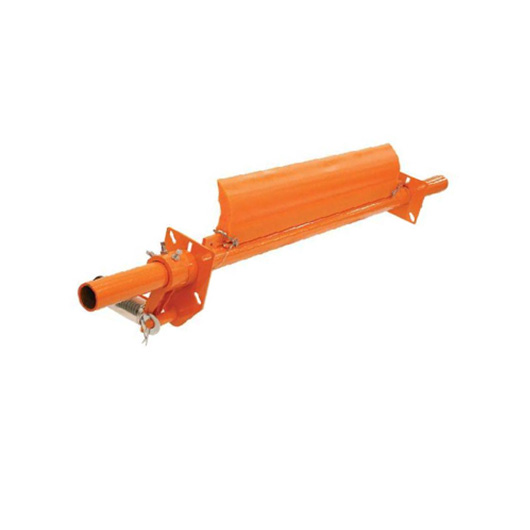

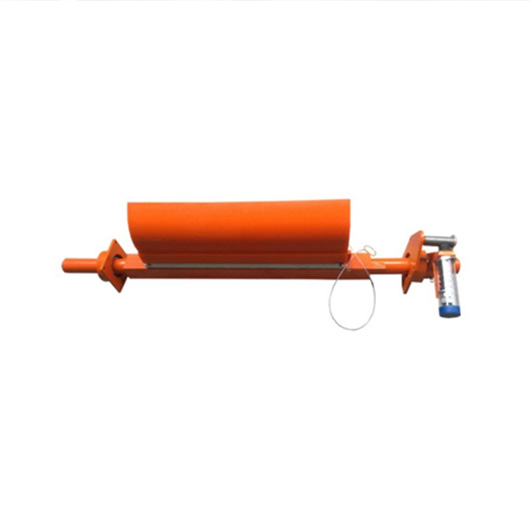

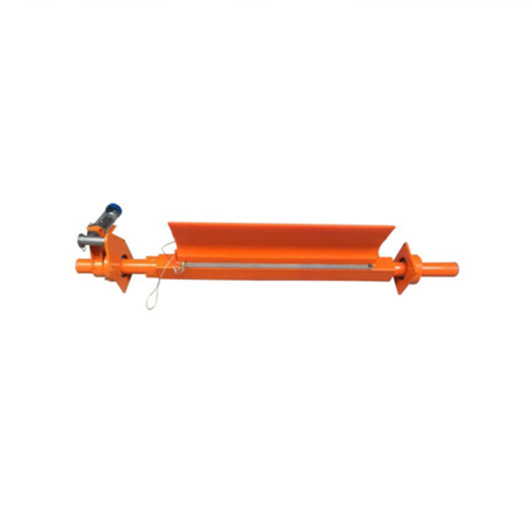

The heavy duty primary belt cleaner can effectively solve the problem of material cleaning under extreme or high belt speed conditions. Equipped with spring tensioner to maintain appropriate cleaning pressure without adjustment.
The blade is made of special polyurethane material, which has good features of wear resistant, high elasticity, low friction coefficient and belt friendly.
Blade replacement is quick and easy, low maintenance cost
Matching tensioner makes cleaning work stable and consistent
|
Order No. |
BW. mm |
Height of PU blade |
Length of blade |
|
800124 |
650 |
300 mm |
610 mm |
|
800130 |
800 |
300 mm |
762 mm |
|
800136 |
1000 |
300 mm |
914 mm |
|
800142 |
1200 |
300 mm |
1067 mm |
|
800148 |
1400 |
300 mm |
1219 mm |
|
800154 |
1500 |
300 mm |
1372 mm |
|
800160 |
1600 |
300 mm |
1524 mm |
|
800166 |
1800 |
300 mm |
1676 mm |
|
800172 |
2000 |
300 mm |
1828 mm |
|
800178 |
2200 |
300 mm |
1981 mm |
* For belt cleaner with belt width 1400 or above, double tensioner is equipped.
