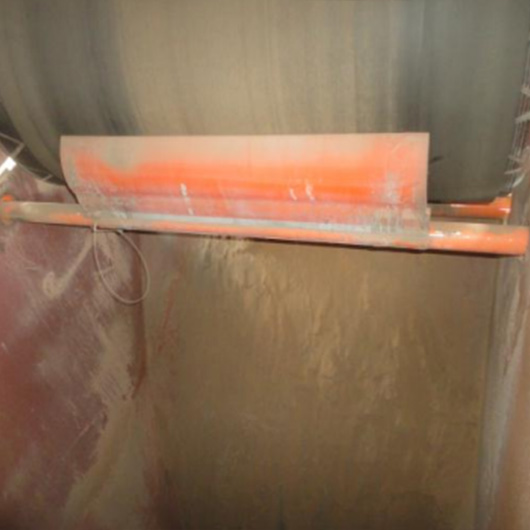

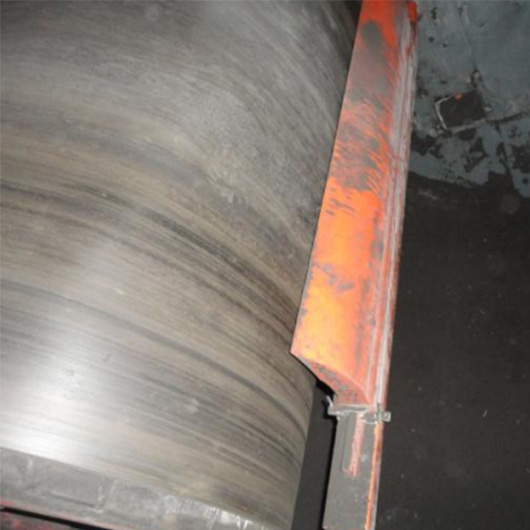

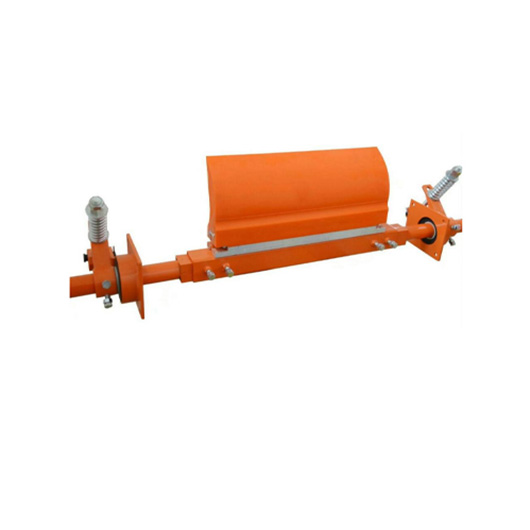

The light duty belt cleaner mainly used to cleaning the residual material adhesive on the belt surface caused by weight or other factors, the purpose is ensure the belt running smoothly. Its suitable for the belt without metal or mechanical joint. The elastic scraper always ensure the blade touching the belt surface.
The blades is high elasticity, can balance the cleaning force and resistance value
The spring tension assembly keeps the cleaning pressure stable.
Special design of blade prolong service life
Easy installation, low maintenance rate
Multiple size of belt width is available
|
Order No. |
BW. mm |
Height of PU blade |
Length of blade |
|
800024 |
650 |
180 mm |
610 mm |
|
800030 |
800 |
180 mm |
762 mm |
|
800036 |
1000 |
180 mm |
914 mm |
|
800042 |
1200 |
180 mm |
1067 mm |
|
800048 |
1400 |
180 mm |
1219 mm |
|
800054 |
1500 |
180 mm |
1372 mm |
|
800060 |
1600 |
180 mm |
1524 mm |
|
800066 |
1800 |
180 mm |
1676 mm |
