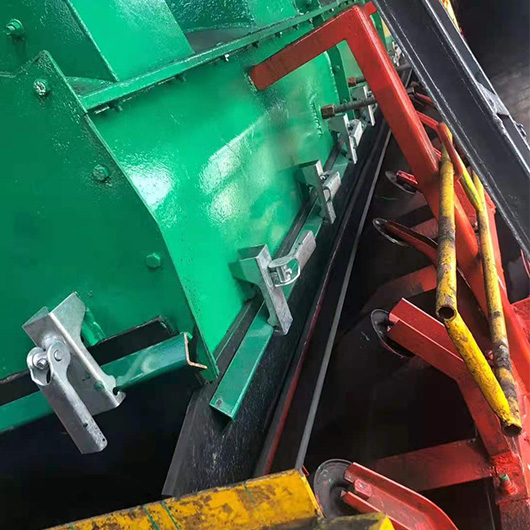

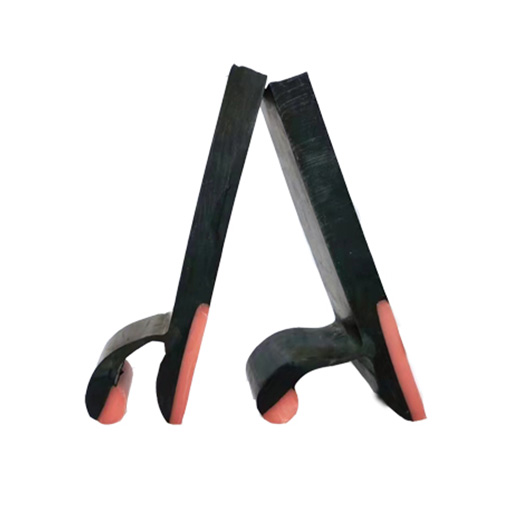

Skirting rubber mainly used in bulk material handling system as a side skirt on conveyor belt system. The function of rubber skirt is to provide an effective and safe seal against belt to limit dust leakage. The rubber skirt has a double layer of skirting rubber compound from polyurethane and rubber.

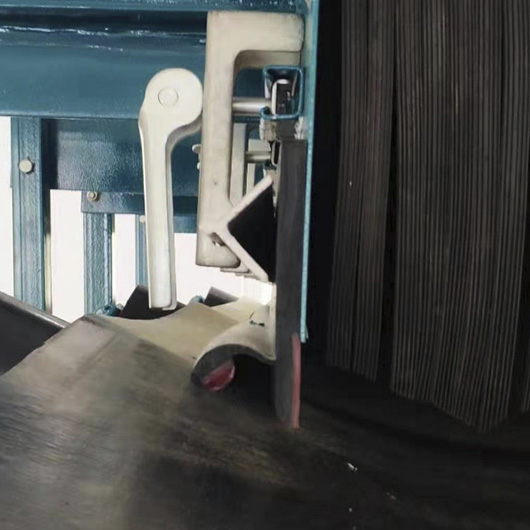

Belt friendly - the dual layer rubber skirt keeps 3-5 mm from the belt and keep proper contact pressure with the belt.
Improvement of working conditions - the first layer can prevent materials from spillage, the second layer can prevent dust from leakage.

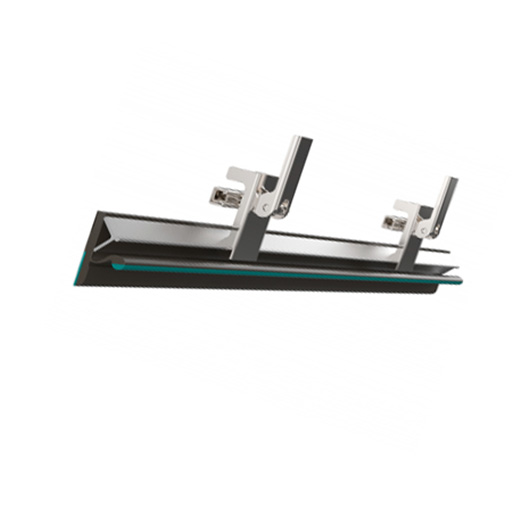

Holding in place by welded U-Clamp - Preventing clamping pressure to the angle bar by the clamp handle.
Easy install & maintenance - One person can install and adjust, reduce maintenance cost.
|
Order No. |
Thickness. mm |
Width. mm |
Length. mm |
|
400012 |
12 |
100 - 300 |
Customized |
|
400015 |
15 |
100 - 300 |
Customized |
|
400020 |
20 |
100 - 300 |
Customized |
