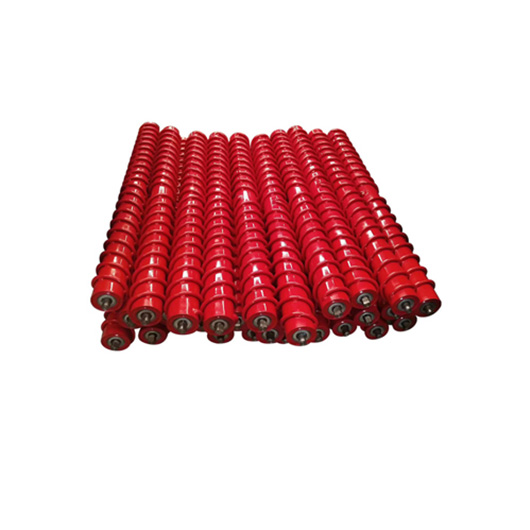

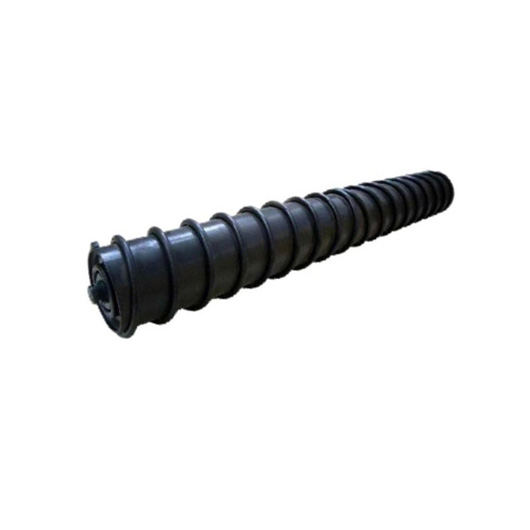

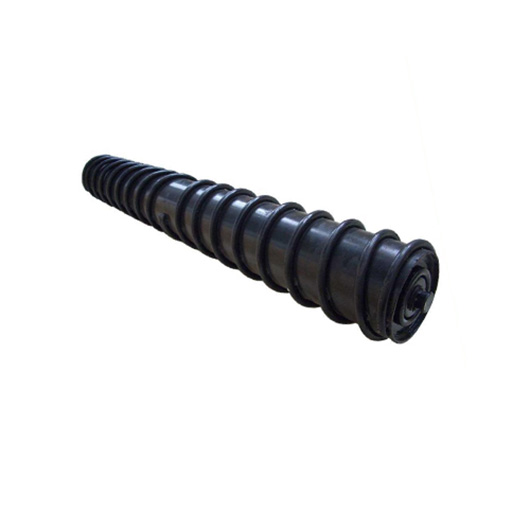

Belt conveyor spiral roller are mostly used in the conveying environment of sticky and wet materials, and have the characteristics of non-stick rollers, strong self-cleaning force and non stick the belt. The spiral material can be rubber, metal and Polyurethane.
Improve belt misalignment
Prevent belt deviation, self-cleaning
Low rotational resistance, low radial run-out
Water and dust proof
|
Belt width |
400 - 2400 mm |
|
O.D |
76 - 194 mm |
|
Length |
528 - 2842 mm |
|
Bearing |
6204, 6205, 6305, 6306, 6307, 6308, 6309 |
|
Bearing diameter |
20 - 45 mm |
|
Shell wall thickness |
3.0 - 6.0 mm |
